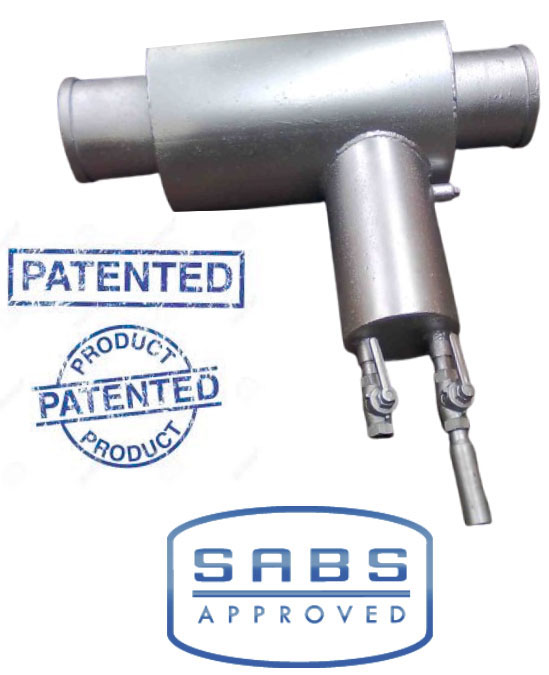

African Executive’s Inline Water trap removes any condensables like water, oil dirt and rust from your compressed air, protecting your pneumatic equipment from corrosion, seals damage and lubrication blow-out.
The clean dry compressed air increases the pneumatic machinery efficiency and improves overall productivity.
This Patented system was designed and is manufactured in South Africa.
The South African Bureau of Standards (SABS) independent conformity assessment certified a test unit in 2000 to be 96.85% efficient with only 0.03% Pressure loss due to the water drainage process used.
This Water Trap does not use any filters, desiccants or electricity and therefor require little maintenance.
The water is drained continuously via an Air water extractor (AWE) which also acts as a silencer.
An automatic mechanical ZERO AIR LOSS condensate Drain may also be used, any solids captured must be drained manually on a
Weekly basis.
The Inline water trap works with any type of compressor, normal working pressure is between 3 and 10 bar, maximum pressure is 16 bar.

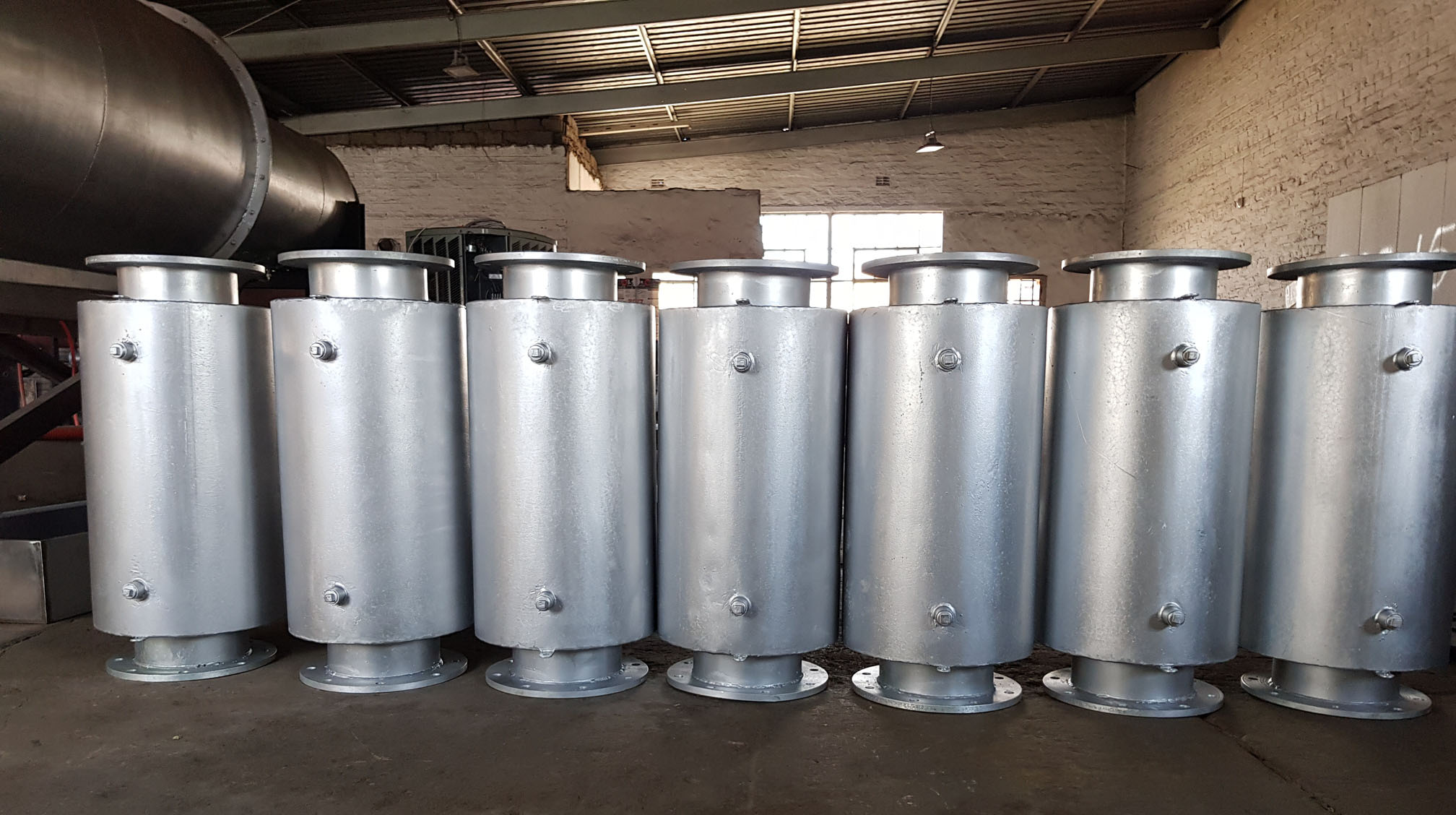

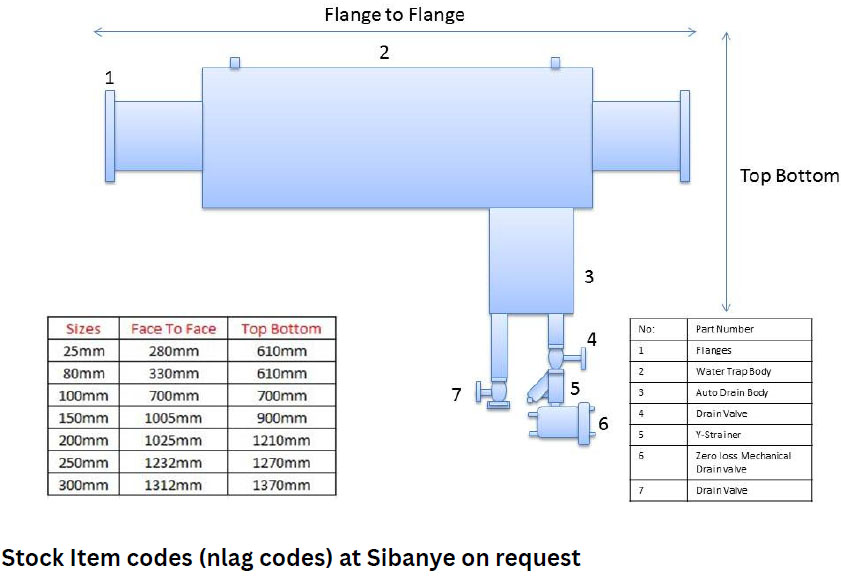

Sizes:
- 25mm – 600mm
- Flanged or Victaulic ends c/w A.W.E unit
- or zero loss mechanical drain valve (optional)
Application
The African Executive Inline Water Trap removes water (condensable) to protect:
- Pneumatic Instrumentation
- Pneumatic Cylinders.
- Motors and Controls of pneumatic mechanical loaders.
- Pneumatic Rock drills.
- Compressed Air Columns.
- Pneumatic filter bag systems.
- Workshops where Air hoists are used.
- Workshops where it is required to blow dirt from electrical motors.
Installation – Underground
On each station underground.
- At each break away.
- Not further than 100m from workplace.
Features
- Tripple Stage
- 97% Condensate Removed
- 0.3% Pressure Drop
- Constant Draining
Results
- Dry,Clean Compressed Air
